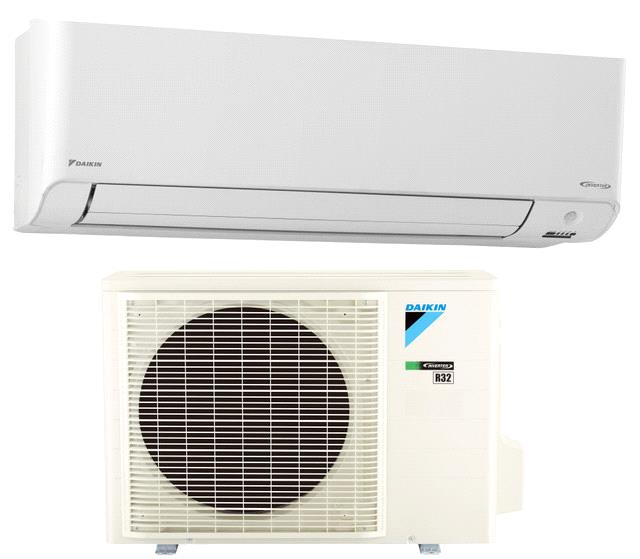

Daikin introduces the first R32 refrigerant mini split system in the US, delivering improved efficiency and reduced Global Warming Potential (GWP). The Atmosphera Line offers higher SEER2 and HSPF2 ratings, lower greenhouse gas emissions, and energy efficiency. Designed with quiet operation and a space-saving design, the system connects the indoor and outdoor units with copper piping, pre-charged to 49 ft., and supports extended piping up to 82 ft. with a height differential of 65 ft.
Heating and Cooling Performance
Provides 100% heating capacity at 5°F and cooling capacity up to 115°F. Optional accessories, such as a drain pan heater, enable heating as low as -13°F. Cooling can extend to -4°F with a wind baffle and dipswitch adjustments.
New Features
- Built-in WiFi: Remote control and monitoring via smartphone app.
- Hybrid Cooling: Dehumidifies efficiently without overcooling, maintaining comfort after the target temperature is reached.
Standard Features
- Quick and easy duct-free installation
- Inverter "variable speed" compressor for efficient operation
- Backlit LCD wireless remote control with weekly, countdown, and 24-hour timers
- 3D Airflow: Circulates air evenly to eliminate hot and cold spots
- Comfort Airflow: Optimized flap positions for cooling and heating
- 2-Area Intelligent Eye: Adjusts airflow based on room occupancy and movement
- Wide angle louvers with auto-swing functionality
- Hot start and Econo mode for energy savings
- Healthy and Clean: Includes advanced filters, self-cleaning features, and removable drain pan
- Anti-Corrosion Treatment: Outdoor unit heat exchanger protected from salt and atmospheric damage
- Automatic defrosting for optimal heating performance
- Quiet indoor and outdoor operation
- Auto-Restart: Recovers previous settings after power restoration
Energy Efficiency
The Daikin Atmosphera system utilizes inverter technology for variable-speed compressor operation, reducing energy consumption and temperature fluctuations while maintaining consistent comfort.
Warranty
Includes a 5-year parts and compressor warranty, extendable to 12 years upon registration after installation by a licensed HVAC technician.
Important Notes
Installation: Must be performed by a qualified, licensed HVAC technician. Manufacturer warranty covers parts only; labor is not included.
General Features
Refrigerant:
R32
Compressor:
Inverter
Energy Star:
No
Dehumidification (pts/hr):
NA
CFMs:
219 / 249 / 340 / 515 (SL / L / M / H)
Fan Speeds:
5
Min. Indoor Noise Level (dBA):
22
Outdoor Unit Noise Level (dBA):
47
Includes Heat Pump:
Yes
Performance Data
Cooling BTUs:
9000
Cooling BTU Output Range:
4400 - 12500
EER2:
16.3
SEER2:
27.4
Heat Pump BTUs:
11000
Heating BTU Output Range:
4400 - 19500
COP2:
4.6
HSPF2:
11.2
Features
Control Type:
Hand Held Remote
Connectivity:
Built-In WiFi
Wired Thermostat Optional:
Yes
Inverter Technology:
Yes
Piping / Line Set Requirements
Line Set Liquid Line:
1/4"
Line Set Suction Line:
3/8"
Pipe Length (No Addl Refr Req):
49.2
Max. Pipe Length (ft.):
82
Max. Height Difference (Indoor / Outdoor) (ft.):
65.625
Operating Range
Ambient Temperature Range - Cooling:
50°F - 114.8°F
Ambient Temperature Range - Heating:
5°F - 64.4°F
Min. Outdoor Temp for Heat °F:
-13
Weights and Dimensions
Indoor Unit
Width (in.):
36.25
Depth (in.):
10.813
Height (in.):
11.75
Weight (lbs.):
29
Outdoor Unit
Width (in.):
33.25
Depth (in.):
11.813
Height (in.):
23.438
Weight (lbs.):
96
Electrical Requirements
Voltage:
208-230V
Amps:
12.3
Circuit Breaker Size (Amps):
15
