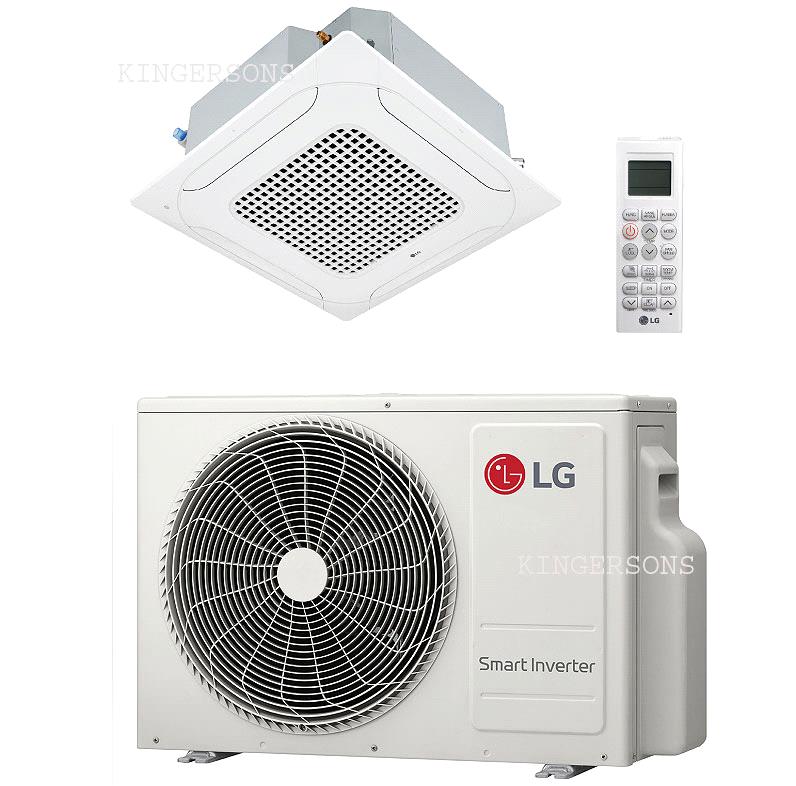

Product Name: LG 12,000 Btu Ceiling Cassette System Cool & Heat Pump SEER 21.5 New R-32 Unit

Item#: KNUDB121A KUSXB121A
Your Price: Call For Price
Choose QTY:
watch make

Product Details - KNUDB121A KUSXB121A


 Airflow Options
  • The KNUDB121A offers automated airflow options, including Swing Mode and Swirl Wind Mode, to ensure optimal air circulation tailored to your space.
Quiet Operation
  • Operating at sound levels as low as 32 dB, this unit provides a peaceful environment, making it ideal for settings where noise reduction is essential.
Jet Cool Function
  • This feature enables rapid cooling by temporarily adjusting the set temperature and fan speed for 30 minutes, quickly bringing comfort to your space.
Automated Operation
  • The unit intelligently monitors and adjusts fan speed and refrigerant flow based on the current and desired temperatures, maintaining consistent comfort levels.
Sleep Mode and Timer
  • Designed for energy efficiency, Sleep Mode incrementally adjusts the temperature over time, while the Timer function allows for automatic deactivation, conserving energy during inactive periods.
Condensate Protection
  • Equipped with an internal condensate pump capable of 27.5 inches of lift, the KNUDB121A effectively manages condensate removal, preventing potential overflow and associated damage.
  • GRILL/PANEL NOT INCLUDED


Specifications

Cooling
Cooling Capacity:
11,100
SEER2:
21.5
EER2:
13.00
Heating
Heating Capacity:
14,000
HSPF2:
10.1
Electrical
Power Supply (V¹/Hz/Ø):
208-230/60/1
MOA:
15
MCA:
13.4
Cooling Rating Amps:
9.65
Heating Rating Amps:
9.65
Compressor:
9.0
Fan Motor:
9.0
Cooling Power Input:
0.25 + 0.4
Heating Power Input:
0.15~1.210~1.62
Voltage:
230-208
Piping
Liquid (in., O.D., Connection Size/Pipe Size):
1/4
Vapor (in., O.D., Connection Size/Pipe Size):
3/8
Additional Refrigerant (oz./ft.):
0.22
Max. Pipe Length (ft.)²:
65.6
Piping Length (no add’l refrig., ft.):
24.6
Max. Elevation (ft.):
49.2
Cooling (°F WB):
57 ~ 77
Heating (°F DB):
59 ~ 81
System Data
Refrigerant Type:
R32
Refrigerant Control:
EEV
Refrigerant Charge (lbs.):
2.43
IDU Sound Pressure (H/M/L) (±3 dB[A])³:
38 / 35 / 32
IDU Net / Shipping Weight (lbs.):
28.4 / 34
Grille Net / Shipping Weight (lbs.):
6.3 / 8.6
Fan
IDU Type:
Turbo
Fan Speeds (Fan/Cool/Heat):
4/5/4
Quantity (ODU + IDU):
1+1
Motor/Drive:
Brushless Digitally Controlled/Direct
IDU Air Flow (CFM, H/M/L):
335 / 283 / 247
Dehumidification (pts./hr.):
2.5
 Product Information
Brand: LG
Model: KNUDB121A
Dimensions & Weights
Width: 22 Inch
Depth: 22 Inch
Height: 8 Inch
Net Weight: 28.4 Lbs.
Shipping Weight: 34 Lbs.
Capacity
Heating Capacity: 11,000 BTU
Cooling Capacity: 14,000 BTU
General
AC System Type: Mini Split
Component Type: Indoor Unit
Operation: Cooling with Heat Pump
Placement Type: Ceiling Cassette
Wireless Remote Control(s) Included: Included
Wired Remote Control(s) Included: Optional
Thermostat Range - Cooling (F°): 57-77
Thermostat Range - Heating (F°): 59-81
Electrical Data
Power Source V / Hz / Ø: (208/230/60/1)
Rated Amps: 9.65 Amps
Performance
Fan: Turbo
Motor: Brushless Digitally Controlled
Energy Star Certified: Yes
Moisture Removal (Pts/hr): 2.5 Pts./Hr.
Airflow Rate Low (CFM): 247 CFM
Airflow Rate Medium (CFM): 283 CFM
Airflow Rate High (CFM): 335 CFM
Operating Sound Level - Low (dB): 32 dB
Operating Sound Level - Medium (dB): 35 dB
Operating Sound Level - High (dB): 38 dB
Piping Connections
Power and Communication Cable - No.: 4
Power and Communication Cable - AWG: 14
Drain Line Outer Diameter: 1/4 Inch
Refrigeration System
Refrigerant Type: R-32
Refrigerant Control: EEV
Piping Length (No Additional Refrigerant): 24.6 Ft.
Max. Line Length - Total: 65.6 Ft.
Features
Quiet/Sleep Mode: Yes
Auto Operation: Yes
Auto-changeover: Yes
No. of Fan Speeds: 4
WiFi Connected: Yes
Technical Details
ADA Compliant: No
Voltage: 230/208 Volts
