| Cooling at 95F^{1} |
Maximum Capacity |
Btu/h |
12,200 |
|
Rated Capacity |
Btu/h |
9,000 |
|
Minimum Capacity |
Btu/h |
3,200 |
|
Maximum Power Input |
W |
1,050 |
|
Rated Power Input |
W |
585 |
|
Moisture Removal |
Pints/h |
0.8 |
|
Sensible Heat Factor |
- |
0.9 |
|
Power Factor [208V / 230V] |
% |
84 / 84 |
| Heating at 47F^{2} |
Maximum Capacity |
Btu/h |
15,900 |
|
Rated Capacity |
Btu/h |
10,900 |
|
Minimum Capacity |
Btu/h |
3,300 |
|
Maximum Power Input |
W |
1,740 |
|
Rated Power Input |
W |
720 |
|
Power Factor [208V / 230V] |
% |
92 / 92 |
| Heating at 17F^{3} |
Maximum Capacity |
Btu/h |
10,200 |
|
Rated Capacity |
Btu/h |
6,700 |
|
Maximum Power Input |
W |
1,390 |
|
Rated Power Input |
W |
730 |
| Heating at 5F^{4} |
Maximum Capacity |
Btu/h |
8,100 |
|
Maximum Power Input |
W |
1,310 |
| Heating at -5F^{6} |
Maximum Capacity |
Btu/h |
6,180 |
| Heating at -10F^{7} |
Maximum Capacity |
Btu/h |
5,330 |
| Efficiency |
SEER2 |
|
28.4 |
|
EER2^{1} |
|
15.4 |
|
HSPF2 [IV] |
|
10.9 |
|
COP at 47°F^{2} |
|
4.44 |
|
COP at 17°F at Maximum Capacity^{3} |
|
2.14 |
|
COP at 5°F at Maximum Capacity^{4} |
|
1.8 |
|
COP at -5°F at Maximum Capacity^{6} |
|
1.58 |
|
COP at -10°F at Maximum Capacity^{7} |
|
1.42 |
|
ENERGY STAR^{®} Certified |
|
Yes |
| Electrical |
Voltage, Phase, Frequency |
V AC / V AC, ø, Hz |
208 / 230, 1, 60 |
|
Guaranteed Voltage Range |
V AC |
187 - 253 |
|
Voltage: Indoor - Outdoor, S1-S2 |
V AC |
230 |
|
Voltage: Indoor - Outdoor, S2-S3 |
V DC |
24 |
|
Short-circuit Current Rating [SCCR] |
kA |
5 |
|
Recommended Fuse/Breaker Size (Outdoor) |
A |
15 |
|
Recommended Wire Size [Indoor - Outdoor] |
AWG |
14 |

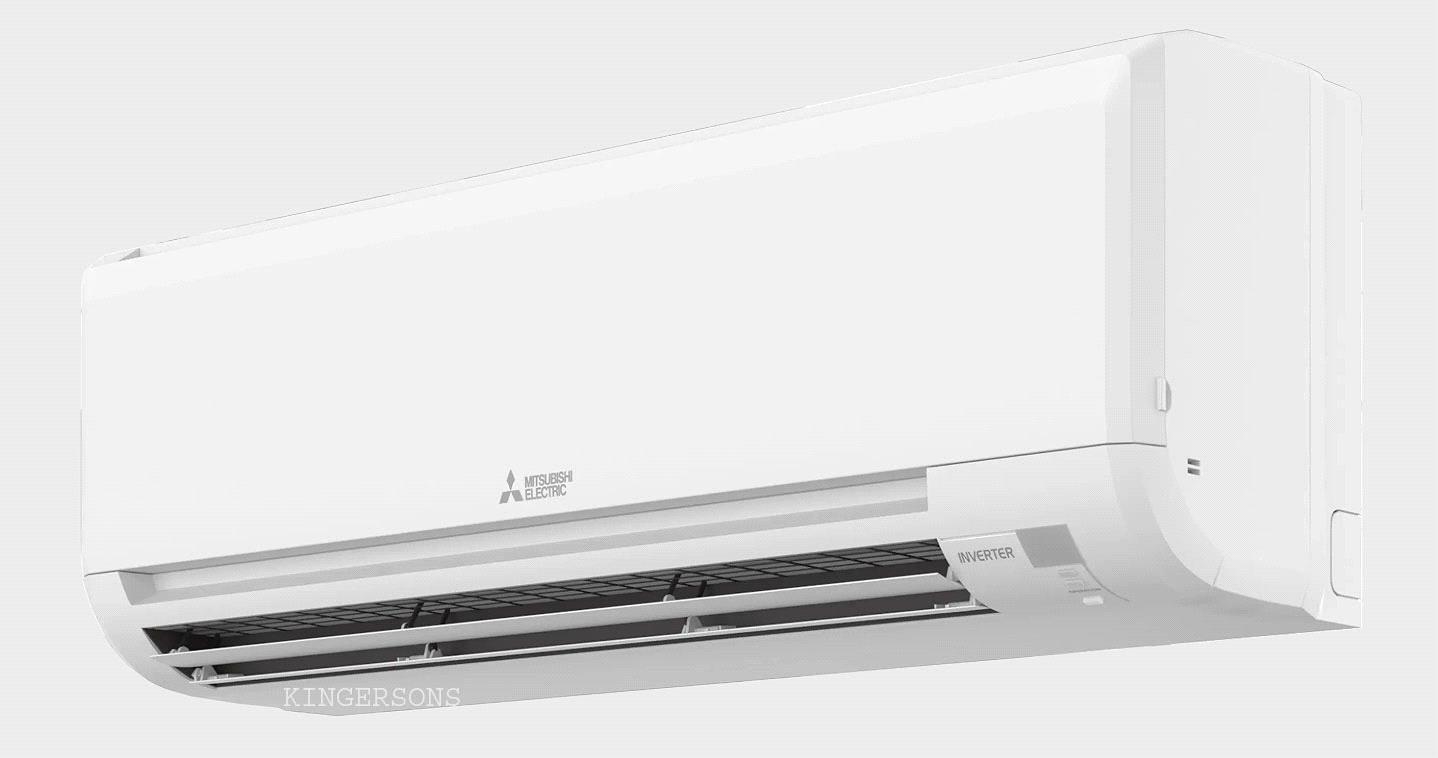

| Indoor Unit |
MCA |
A |
1 |
|
Fan Motor Output |
W |
30 |
|
Airflow Rate at Cooling, Dry |
CFM |
151, 172, 256, 353, 448 |
|
Airflow Rate at Cooling, Wet |
CFM |
136, 154, 230, 318, 403 |
|
Airflow Rate at Heating, Dry |
CFM |
151, 172, 256, 353, 448 |
|
Sound Pressure Level [Cooling] |
dB (A) |
19, 22, 30, 37, 43 |
|
Sound Pressure Level [Heating] |
dB (A) |
19, 22, 30, 37, 43 |
|
Drain Pipe Size O.D. |
inch [mm] |
5/8 [15.88] |
|
Dual Barrier Coating on Heat Exchanger |
|
Yes |
|
External Finish Color |
|
Munsell 0.7PB 9.2/0.4 |
|
Unit Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
31-13/32 x 9-21/32 x 11-25/32 [798 x 245 x 299] |
|
Package Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
34-1/4 x 14-1/4 x 12-3/4 [870 x 360 x 320] |
|
Unit Weight |
lbs [kg] |
23 [10.40] |
|
Package Weight |
lbs [kg] |
27 [12] |
|
Fan Motor Type |
|
DC Motor |
| IDU Operating Temp. Range |
Cooling Intake Air Temp [Maximum / Minimum] |
°FDB, °FWB / °FDB,
°FWB |
90, 73 / 67, 57 |
|
Heating Intake Air Temp [Maximum / Minimum] |
°FDB |
80 / 70 |
|
NOTES
^{1} Cooling at 95°F (Indoor: 80°F DB, 67°F WB // Outdoor: 95°F DB, 75°F WB)
^{2} Heating at 47°F (Indoor: 70°F DB, 60°F WB // Outdoor: 47°F DB, 43°F WB)
^{3} Heating at 17°F (Indoor: 70°F DB, 60°F WB // Outdoor: 17°F DB, 15°F WB)
^{4} Heating at 5°F (Indoor: 70°F DB, 60°F WB // Outdoor: 5°F DB, 4°F WB)
^{6} Heating at -5°F (Indoor: 70°F DB, 60°F WB // Outdoor: -5°F DB, -6°F WB)
^{7} Heating at -10°F (Indoor: 70°F DB, 60°F WB // Outdoor: -10°F DB, -11°F WB)
^{*} Indoor/Outdoor Unit Operating Temperature Range (Cooling Air Temp [Maximum / Minimum]):
• Applications should be restricted to comfort cooling only; equipment cooling applications are not recommended for low ambient temperature conditions.
** Outdoor Unit Operating Temperature Range (Cooling Thermal Lock-out / Re-start Temperatures; Heating Thermal Lock-out / Re-start Temperatures):
• System cuts out in heating mode and automatically restarts at these temperatures. |
|
Specifications are subject to change without notice. |
