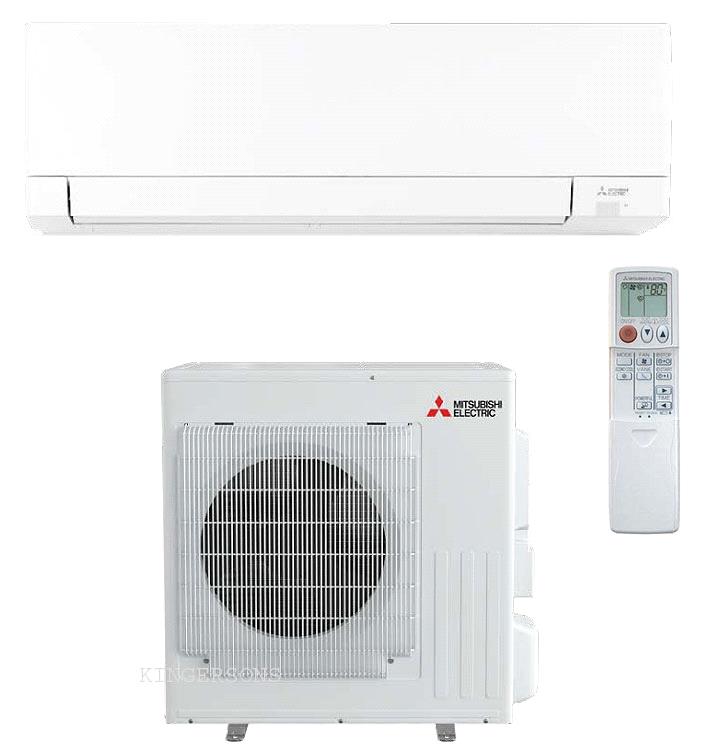

| Cooling at 95F^{1} |
Maximum Capacity |
Btu/h |
20,000 |
|
Rated Capacity |
Btu/h |
18,400 |
|
Minimum Capacity |
Btu/h |
7,400 |
|
Maximum Power Input |
W |
2,890 |
|
Rated Power Input |
W |
1,720 |
|
Moisture Removal |
Pints/h |
4.5 |
|
Sensible Heat Factor |
- |
0.78 |
|
Power Factor [208V / 230V] |
% |
98 / 98 |
| Efficiency |
SEER2 |
|
21.5 |
|
EER2^{1} |
|
13 |
|
ENERGY STAR^{®} Certified |
|
Yes |
| Electrical |
Voltage, Phase, Frequency |
V AC / V AC, , Hz |
208 / 230, 1, 60 |
|
Guaranteed Voltage Range |
V AC |
187 - 253 |
|
Voltage: Indoor - Outdoor, S1-S2 |
V AC |
230 |
|
Voltage: Indoor - Outdoor, S2-S3 |
V DC |
24 |
|
Short-circuit Current Rating [SCCR] |
kA |
5 |
|
Recommended Fuse/Breaker Size (Outdoor) |
A |
25 |
|
Recommended Wire Size [Indoor - Outdoor] |
AWG |
14 |
| Indoor Unit |
MCA |
A |
1 |
|
Fan Motor Output |
W |
56 |
|
Airflow Rate at Cooling, Dry |
CFM |
324, 392, 454, 636, 765 |
|
Airflow Rate at Cooling, Wet |
CFM |
292, 353, 408, 573, 688 |
|
Sound Pressure Level [Cooling] |
dB (A) |
30, 37, 41, 48, 53 |
|
Drain Pipe Size O.D. |
inch [mm] |
5/8 [15.88] |
|
Dual Barrier Coating on Heat Exchanger |
|
Yes |
|
External Finish Color |
|
Munsell 0.7PB 9.2/0.4 |
|
Unit Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
43-5/16 x 10-1/8 x 12-13/16 [1,100 x 257 x 325] |
|
Package Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
45-1/2 x 15-1/2 x 13-1/2 [1,160 x 400 x 340] |
|
Unit Weight |
lbs [kg] |
37 [16.50] |
|
Package Weight |
lbs [kg] |
42 [18.80] |
|
Fan Motor Type |
|
DC Motor |
| IDU Operating Temp. Range |
Cooling Intake Air Temp [Maximum / Minimum] |
°FDB, °FWB / °FDB,
°FWB |
90, 73 / 67, 57 |
|
Heating Intake Air Temp [Maximum / Minimum] |
°FDB |
80 / 70 |
| Outdoor Unit |
MCA |
A |
23 |
|
MOCP |
A |
40 |
|
Fan Motor Full Load Amperage |
A |
0.76 |
|
Fan Motor Output |
W |
55 |
|
Airflow Rate Cooling |
CFM |
2,202 |
|
Defrost Method |
|
Reverse Cycle |
|
Coating on Heat Exchanger (Bluefin, Sea Coast) |
|
Yes, Yes |
|
Sound Pressure Level, Cooling^{1} |
dB (A) |
55 |
|
Compressor Type |
|
Twin Rotary |
|
Compressor Model |
|
SRB172FQHMT |
|
Compressor Oil [Type // Charge] |
Type // oz |
RM68EH // 14.5 |
|
External Finish Color |
|
Munsell 3Y 7.8/1.1 |
|
Base Pan Heater |
|
Optional |
|
Unit Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
33-1/16 x 13 x 34-5/8 [840 x 330 x 880] |
|
Package Dimensions (W x D x H) |
inch x inch x inch
[mm x mm x mm] |
38-3/4 x 16-3/4 x 40-3/4 [980 x 420 x 1,030] |
|
Unit Weight |
lbs [kg] |
116 [52.30] |
|
Package Weight |
lbs [kg] |
135 [61.20] |
| ODU Operating Temp. Range |
Cooling Intake Maximum Air Temp [Maximum / Minimum*] |
°FDB |
115 / 14 |
|
Cooling Thermal Lock-out / Re-start Temperatures** |
°FDB |
-1 / 3 |
| Refrigerant |
Type |
|
R454B |
|
Pre-Charged Refrigerant Amount |
lbs, oz |
3, 12 |
|
Maximum Pre-Charged Piping Length |
ft [m] |
50 [15] |
|
Additional Refrigerant Charge Per Additional Piping Length |
oz/ft |
0.22 |
| Piping |
Gas Pipe Size O.D. [Flared] |
inch [mm] |
5/8 [15.88] |
|
Liquid Pipe Size O.D. [Flared] |
inch [mm] |
1/4 [6.35] |
|
Maximum Piping Length |
ft [m] |
100 [30] |
|
Maximum Height Difference |
ft [m] |
50 [15] |
|
Maximum Number of Bends |
|
10 |
|
NOTES
^{1} Cooling at 95°F (Indoor: 80°F DB, 67°F WB // Outdoor: 95°F DB, 75°F WB)
^{*} Indoor/Outdoor Unit Operating Temperature Range (Cooling Air Temp [Maximum / Minimum]):
• Applications should be restricted to comfort cooling only; equipment cooling applications are not recommended for low ambient temperature conditions.
** Outdoor Unit Operating Temperature Range (Cooling Thermal Lock-out / Re-start Temperatures): |
|
Specifications are subject to change without notice. |
