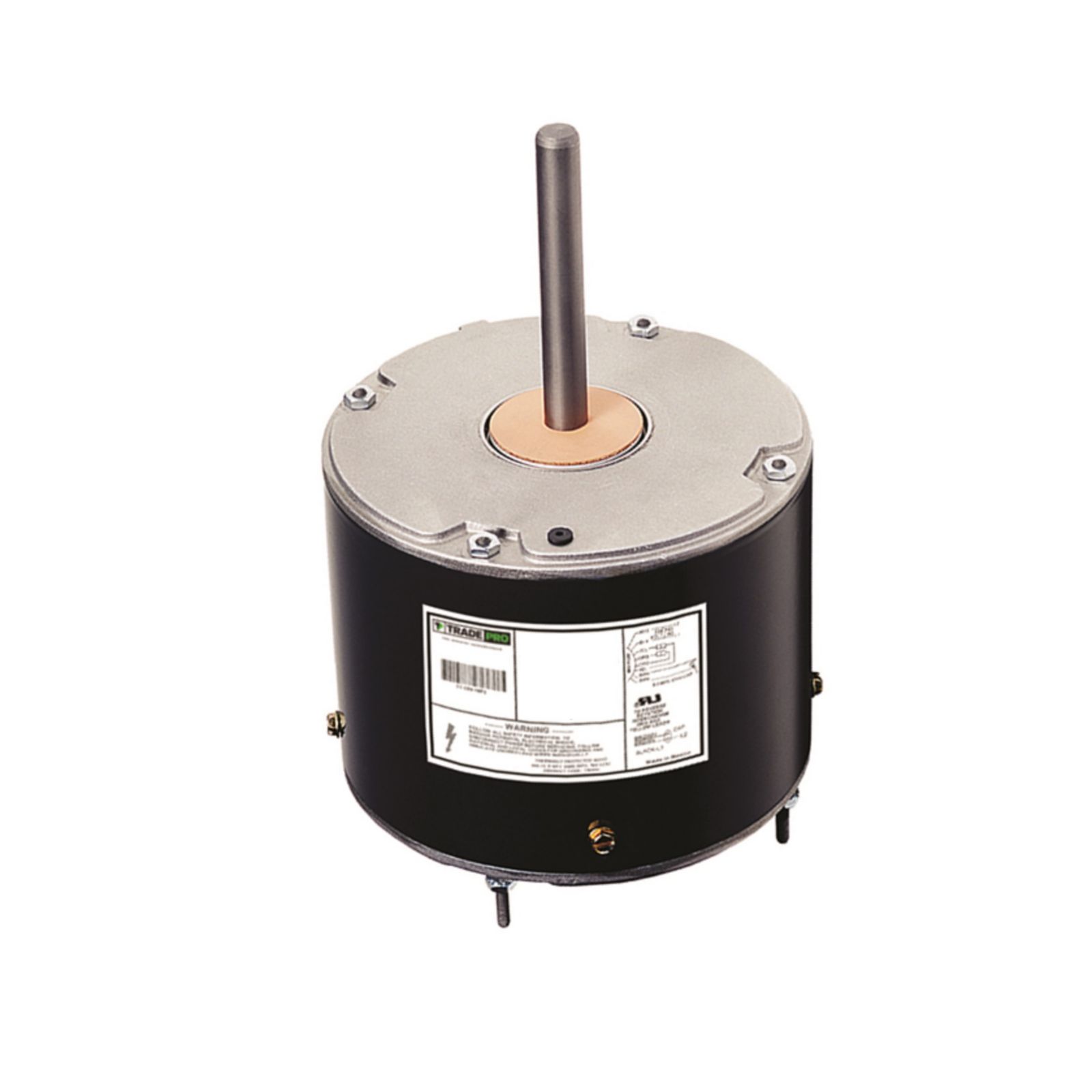

Brand: TradePro Save Listing| Email Listing | Share Product Name: Condenser Fan Motor TradePro TP-C25-1SP2HT-8 1/4 HP Single Speed 230V Compared to A.O. Smith GE motors Item#: TP-C25-1SP2HT-8 Your Price: Email For Price Click Here Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Required
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - TP-C25-1SP2HT-8 Name TradePro TP-C25-1SP2HT-8 - Condenser Motor - 1 Speed, 825 RPM, 230 Volt, 1/4 Horsepower, High Temperature Brand TradePro Item Number TP-C25-1SP2HT-8 Manufacturer Product Number TP-C25-1SP2HT-8 SKU - PIM Number 1418039136291 Item Number 321790 UPC 00816075029569 Unit of Measure EACH Weight 18.4 Pound (lb.) Length 4.9 Inches (in) Width 5.6 Inches (in) Height 5.6 Inches (in) Hazardous Material No EPA Cert Required No Country of Origin MEX Voltage 208-230 VAC Full Load Amps 2.1 Amps 2.1 Phase Single Cycle/Hertz 60 Capacitor MFD µF 5/370 Rotation Counter-Clockwise Insulation Class F Motor Type PSC Shaft Diameter 1/2" Shaft Length 5 Bearing Type Ball Duty Continuous Duty Enclosure TEAO Lead Length 36 NEMA Frame 48Y Number of Bearings 2 Number of Poles 8 Number of Speeds 1 Poles Eight Protection Auto Service Factor 1 Thermal Protection Yes Type Condenser Fan Warranty Offered 1 Year UL Recognized Yes Motor HP 1/4 HP UL Listed No RPM 825 Universal fixed fractional condenser motor. High Temperature 208-230V single phase, 2.1 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Ball bearing, reversible direction. 5mf 370V capacitor. Mounts in any position. Please Note! The actual brand name on product received may vary from the description but will always be manufactured to the same strict standard of quality. Cross-Reference The main item on this page is a comparable or direct substitute for any of the products below. By purchasing the comparable or substitute product, there may be special installation considerations and it may or may not be covered under the original products warranty. Brand Model A.O. Smith FE1028SF Century FE1028SF DiversiTech WG840204HT Regal Beloit FE1028SF TopTech TT-C25-1SP2HT-8 Your Phone Number : Enter Your Phone Number Your Email : Enter Your Email Not valid email address What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster Please select your message about What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Please select status of your project Type your name and message here : Verification Code : 2 + 5 Send Shop for TradePro and browse manuals and details of TP-C25-1SP2HT-8 AC Repair Goodyear, AZ HVAC Contractors Hayward, CA Duct Cleaning Lenexa, KS HVAC Contractors Toledo, OH Home AC Repair Federal Way, WA Certified Electrician Gary, IN Top
Universal fixed fractional condenser motor. High Temperature 208-230V single phase, 2.1 amp draw. Side shell mount, pre-drilled to accept Rheem mounting plate, end plate drilled to accept Rheem or Trane mounts. 48 frame, 5" keyed shaft, 1/2" diameter, Ball bearing, reversible direction. 5mf 370V capacitor. Mounts in any position. Please Note! The actual brand name on product received may vary from the description but will always be manufactured to the same strict standard of quality.
The main item on this page is a comparable or direct substitute for any of the products below. By purchasing the comparable or substitute product, there may be special installation considerations and it may or may not be covered under the original products warranty. Brand Model A.O. Smith FE1028SF Century FE1028SF DiversiTech WG840204HT Regal Beloit FE1028SF TopTech TT-C25-1SP2HT-8
