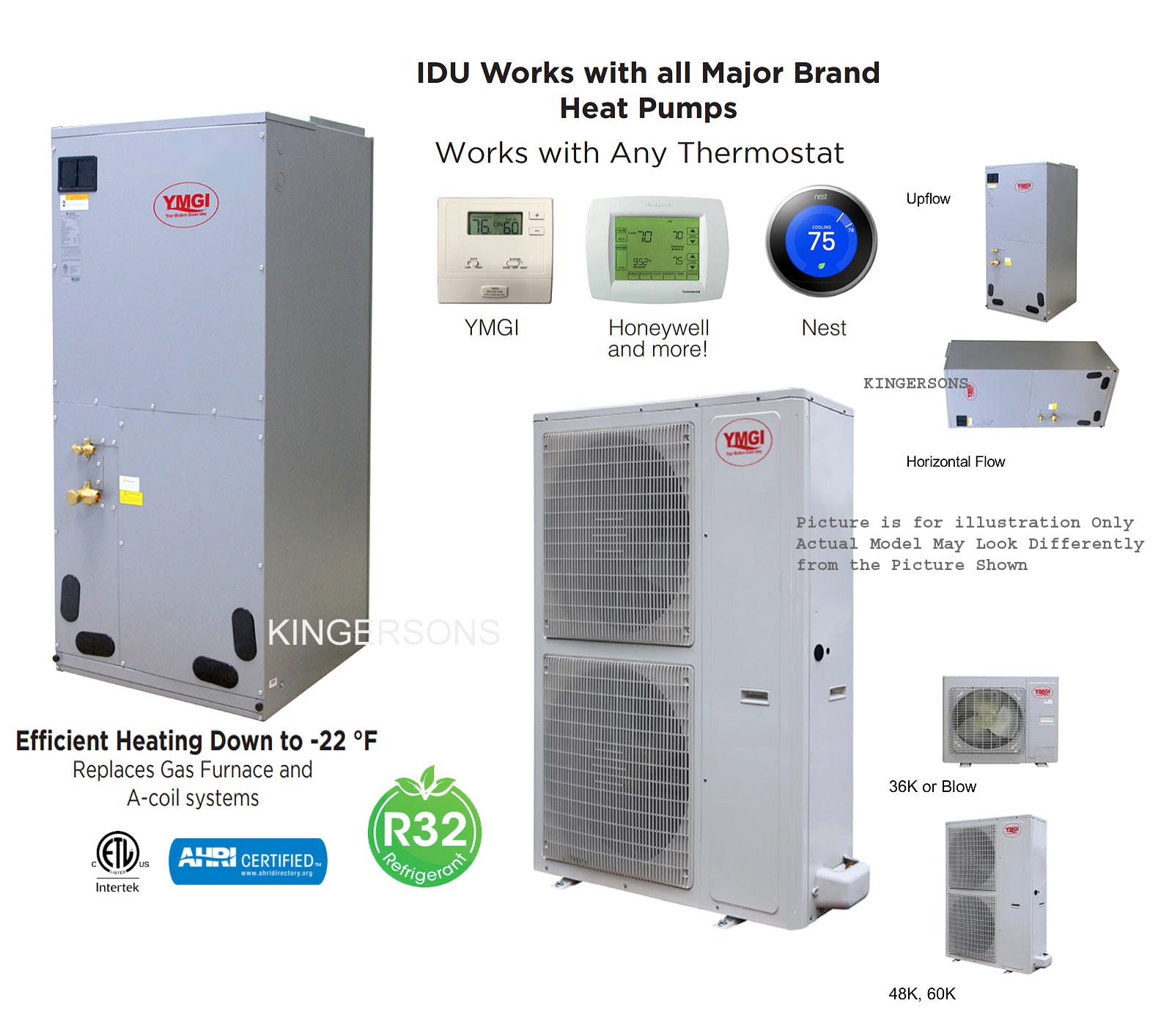

YMGI Mini Central Ducted Heat Pump Cooling and Heating-Hyper Heat (VRU-32 Series) |
|
|
|
|
| System Ordering # |
VRU32-18 |
VRU32-24 |
VRU32-36 |
VRU32-48 |
VRU32-60 |
| Indoor Unit Model |
VRUI-18UC-M2B(32) |
VRUI-24UC-M2B(32) |
VRUI-36UC-M2B(32) |
VRUI-48UC-M2B(32) |
VRUI-60UC-M2B(32) |
| Outdoor Unit Model |
VRUO-18HP-U2B(32) |
VRUO-24HP-U2B(32) |
VRUO-36HP-U2B(32) |
VRUO-48HP-U2B(32) |
VRUO-60HP-U2B(32) |
| System Capacity Rating |
18,000 Btu/h |
24,000 Btu/h |
36,000 Btu/h |
48,000 Btu/h |
60,000 Btu/h |
| Cooling Capacity Ranges |
10,000-20,000 Btu/h |
17,900-26,400 Btu/h |
19,600-36,000 Btu/h |
25,100-50,800 Btu/h |
25,900-57,200 Btu/h |
| Cooling Capacity @95F Ambien 18,000 Btu/h |
|
24,000 Btu/h |
34,000 Btu/h |
48,000 Btu/h |
53,000 Btu/h |
| 3) YMGI outdoor VRUO can individually work Heating Capacity Ranges |
10,000-20,000 Btu/h |
17,200-27,000 Btu/h |
21,500-39,600 Btu/h |
33,700-55,000 Btu/h |
34,200-61,600 Btu/h |
| Heating Capacity @47/17/5F |
|
19,000 / 18,000 / 18,000 Btu/h 25,000 / 24,000 / 24,000 Btu/h |
35,000 / 34,000 / 34,000 Btu/h |
50,000 / 48,000 / 48,000 Btu/h |
60,000 / 54,000 / 54,000 Btu/h |
| Outdoor Ambient Temp. Ranges |
|
|
Cooling 5-129F; Heating -22 to 75F |
|
|
| SEER2 / EER2 |
18.5 / 12.5 |
18.5 / 12.5 |
18.2 / 12.0 |
19.0 / 12.0 |
18.5 / 11.9 |
| HSPF2 / COP2 @47F / COP @5F |
9.5 / 3.6 / 2.0 |
10.0 / 3.6 / 2.0 |
10.0 / 3.2 / 2.0 |
10.5 / 3.5 / 2.0 |
10.5 / 3.4 / 2.1 |
| Indoor Unit Model |
VRUI-18UC-M2B(32) |
VRUI-24UC-M2B(32) |
VRUI-36UC-M2B(32) |
VRUI-48UC-M2B(32) |
VRUI-60UC-M2B(32) |
| Control to Heat Pump Thermostat |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
| Control to ODU |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
| Power Supply |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
| Power Supply Ranges |
187-253V |
187-253V |
187-253V |
187-253V |
187-253V |
| MCA Amp |
4.6 |
4.6 |
5.3 |
7.1 |
7.7 |
| Power Supply-HVAC MOP Amp |
15 |
15 |
15 |
15 |
15 |
| Power Supply-Wire Gauges Min. |
Copper 14 AWG |
Copper 14 AWG |
Copper 14 AWG |
Copper 14 AWG |
Copper 14 AWG |
| EXV for Refrirgerant |
R32 |
R32 |
R32 |
R32 |
R32 |
| Ele. Heater Kit KW (Optional) |
5 |
5 |
5/10 |
5/10/15 |
5/10/15/20 |
| Air Flow-Multi Position |
Yes |
Yes |
Yes |
Yes |
Yes |
| Air Flow CFM |
650 |
760 |
1000 |
1200 |
1500 |
| External Satic Pressure In. W.C. |
1 |
1 |
1 |
1 |
1 |
| Dehumification Rate Pt/Hr. |
3.2 |
4.3 |
6.0 |
8.5 |
9.8 |
| Sound Level dB(A) |
50 |
50 |
51 |
52 |
53 |
| Valve Sizes Liquid-Gas |
1/4-1/2" |
3/8-3/4" |
3/8-3/4" |
3/8-3/4" |
3/8-3/4" |
| Dimensions Outline WxHxD |
18 1/8 x 43 1/2 x 21 1/2" |
18 1/8 x 43 1/2 x 21 1/2" |
21 1/4 x 48 3/16 x 21 1/4" |
24 13/16 x 52 x 21 1/4" |
24 13/16 x 52 x 21 1/4" |
| Dimensions Package WxHxD |
20 5/8 x 45 5/8 x 26" |
20 5/8 x 45 5/8 x 26" |
23 3/4 x 50 3/8 x 26" |
27 1/4 x 54 3/16 x 26" |
27 1/4 x 54 3/16 x 26" |
| Weights-Net/Gross LBs |
136/144 |
136/144 |
163/179 |
200/218 |
200/218 |
| 20' / 40' HQ Loading |
64 / 128 |
64 / 128 |
64 / 128 |
48 / 96 |
48 / 96 |
| Outdoor Unit Model |
VRUO-18HP-U2B(32) |
VRUO-24HP-U2B(32) |
VRUO-36HP-U2B(32) |
VRUO-48HP-U2B(32) |
VRUO-60HP-U2B(32) |
| Control to Heat Pump Thermostat |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
| Control to IDU |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
24VAC Diagram-Unit/Manual |
| Power Supply |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
208-230/1/60 |
| Power Supply Ranges |
187-253V |
187-253V |
187-253V |
187-253V |
187-253V |
| Amperage-Cooling |
14 |
14.6 |
22 |
30 |
30 |
| Amperage-Heating |
15 |
15.2 |
25.6 |
32 |
32 |
| MCA Amperage |
19 |
21 |
27.7 |
39.9 |
39.9 |
| Power Supply-HVAC MOP Amp |
20 |
25 |
30 |
50 |
50 |
| Power Supply-Wire Gauges Min. |
Copper 12 AWG |
Copper 10 AWG |
Copper 10 AWG |
Copper 8 AWG |
Copper 8 AWG |
| Valve Sizes Liquid-Gas |
1/4-1/2" |
3/8-3/4" |
3/8-3/4" |
3/8-3/4" |
3/8-3/4" |
| Refrirgerant |
R32 |
R32 |
R32 |
R32 |
R32 |
| Pre-charge for 30' Ref. Line Ozs |
56.4 |
88.2 |
102.3 |
162.3 |
162.3 |
| Charge Ozs/extra foot |
0.108 |
0.215 |
0.215 |
0.323 |
0.323 |
| Rec. Pipe Length Feet |
10-66 |
10-88 |
10-88 |
10-164 |
10-164 |
| Pipe Elevation Diffrence Feet |
33 |
49 |
49 |
49 |
49 |
| Dimensions Outline WxHxD |
36 1/4 x 29 3/8 x 14 9/16" |
39 x 37 13/16 x 14 9/16" |
39 x 37 13/16 x 14 9/16" |
35 7/16 x 49 5/8 x 13 3/8" |
35 7/16 x 49 5/8 x 13 3/8" |
| Dimensions Package WxHxD |
42 1/4 x 31 1/2 x 19" |
45 3/8 x 43 11/16 x 18 13/16" |
45 3/8 x 43 11/16 x 18 13/16" |
40 11/16 x 55 3/16 x 17 3/8" |
40 11/16 x 55 3/16 x 17 3/8" |
| Weights-Net/Gross LBs |
133/143 |
187/212 |
187/212 |
241/264 |
241/264 |
| 20' / 40' Loading |
56 / 112 |
48 / 96 |
48 / 96 |
26 / 52 |
26 / 52 |
| |
|
|
|
|
|
