Description
Mitsubishi MSY-GL09NA-U1 - M Series 9K BTU/H Wall Mounted, Indoor Air Conditioning Unit, R410A
INVERTER-driven wall-mounted ductless indoor unit for residential applications. Operates quietly and efficiently to provide comfort in any room. Rated capacities range from 3.1K to 31.4K BTU/H.
Compact side discharge outdoor unit
Zone control
Quiet operation for both indoor and outdoor units
"Powerful Mode" function permits system to temporarily run at a lower/higher temperature with an increased fan speed, which quickly brings the room to the optimum comfort level

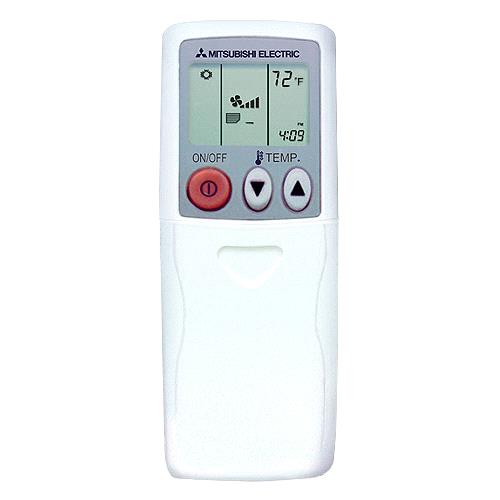

Wireless remote controller is included
Indoor unit powered from outdoor unit using A-Control
Automatic restart following a power outage
Self-check function - onboard diagnostics
Dry Mode function is standard
|
Name
|
Mitsubishi MSY-GL09NA-U1 - M Series 9K BTU/H Wall Mounted, Indoor Air Conditioning Unit, R410A |
|
Brand
|
Mitsubishi |
|
Item Number
|
MSYGL09NAU1 |
|
Manufacturer Product Number
|
MSY-GL09NA-U1 |
|
SKU - PIM Number
|
1463560349605 |
|
ERP Number
|
360876 |
|
UPC
|
622632121207 |
|
Unit of Measure
|
EACH |
|
Weight
|
21.0 Pound (lb.) |
|
Length
|
9.1 Inches (in) |
|
Width
|
31.4 Inches (in) |
|
Height
|
11.6 Inches (in) |
|
Hazardous Material
|
No |
|
EPA Cert Required
|
No |
|
Country of Origin
|
MEX |
Mitsubishi MUY-GL09NA-U1 - M Series 9K BTU/H Outdoor Air Conditioning Unit, R410A
INVERTER-driven outdoor unit for residential applications. Operates quietly and efficiently to provide comfort in any room. Rated capacities range from 3.1K to 31.4K BTU/H.
Compact side discharge outdoor unit
Zone control
Quiet operation for both indoor and outdoor units
"Powerful Mode" function permits system to temporarily run at a lower/higher temperature with an increased fan speed, which quickly brings the room to the optimum comfort level
Wireless remote controller is included
Indoor unit powered from outdoor unit using A-Control
Automatic restart following a power outage
Self-check function - onboard diagnostics
Dry Mode function is standard
| Brand: |
Mitsubishi |
| Configuration: |
Wall Mounted |
| Connection Method: |
Flared |
| Cooling BTU: |
9,000 |
| Drain Pipe Size: |
5/8" |
| Efficiency: |
24.6 SEER |
| Electrical: |
208 / 230 V. 1 Phase 60 Hz |
| Energy Source: |
Electric |
| Energy Star: |
Yes |
| Inverter: |
Yes |
| Liquid Line: |
1/4" |
| Model: |
MUY-GL09NA |
| Nominal Capacity: |
0.75 Ton |
| Product Depth: |
11 1/4" |
| Product Height: |
21 5/8" |
| Product Length: |
31 1/2" |
| Product Ship Weight: |
81 lbs. |
| Refrigerant: |
R410A |
| Suction Line: |
3/8" |
| Unit Type: |
Outdoor |
| Warranty Terms - Compressor: |
10 Years / Must be registered within 90 days of installation in MEHVAC.COM with Proof of professional installation |
| Warranty Terms - Parts: |
10 Years / Must be registered within 90 days of installation in MEHVAC.COM with Proof of professional installation |
