Processing. Please wait. Brand: Save Listing| Email Listing | Share Product Name: YMGI Multizone Purpose Floor/Ceiling 24,000 Indoor Item#: wmms-24EU-(59)4 Reg Price: $1,345.99 Your Price: $929.99 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - wmms-24EU-(59)4 Description (59)2 DC Inverter Multiple Zone-Indoor Units-Ceiling/Floor Unit EU, 24K Btu/h, 208-230/1/60 Items Unit / Conditions WMMS-24EU-V2B(59)2 Power Supply Voltage/Ph/Hz 208-230/1/60 Allowed Voltage Range 187-253V Cooling Capacity High/Standard/Low 26500/22800/9600 Heating Capacity ID 70/60, OD 47/43F 27400 ID 70/60, OD 17/15F 23600 ID 70/60, OD 17/5F 20600 SEER Btu/h.W 16 HSPF Btu/h.W 8.2 Dehumidifying Capacity Pints/Hr. 5.28 Air Flow (CFM) High/Medium/Low 736/530/412 Air-throw (Ft.) Horizontal Installation 35-30 Upon Mounting Height/Speed/Temp. Upright Installation 35-20 Upon Mounting Location/Speed/Temp. External Static Pressure Water In. 0 Sound Level Pressure dB(A) (H/M/L) 48/46/44 Power dB(A) (H/M/L) 58/56/54 Fan Motor Model FG50A Shaft Double Speed (RMP, H/M/L) 985/800/680 Output (W) 40 Input (W) 145 Capacitor (uF) 2 Fan Wheel Type-Piece Centrifugal-4 Diameter x Width (In.) 5.5 x 4.1 Swing/Step Motor Model MP35CB Piece 2 Output (W) 2 Input Power of Ele. Heater Type-W NA Electrical Protection Fuse PCB/Transformer T3.15A 250V / 0.2A Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube Color Blue or the Like Copper Line Connections Sealed by Dry Nitrogen Yes Flare/Nut-Liuqid + Gas 1/4? + 5/8? Drain Hose Connection OD (In.) 0.67 Condensate Pump Installed-Lift (In.) NA Refrigerant Environmental Friendly R410A Filter Type-Feature Standard-Washable Size WxH (In.) – Qty. 21.8 x 8.68 – 2 Clean Coil Surface Anti-Mildew Function Yes Pre-heating Function Anti-Cold Blowing Yes Memory of Previous Set-ups Power is Lost/Resumed Yes Auto-Restart Function If Power is Resumed Yes Unit Dimensions Net WxHxD (In.) 48 x 27.6 x 8.9 Package WxHxD (In.) 52.8 x 32.3 x 11.8 Unit Weight Net (LBs) 99 Packaged (LBs) 119 Loading Capacity 20’/40’/40’HQ 66/132/132 Your Phone Number : Your Email : What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Type your name and message here : Verification Code : 1 + 7 Send Shop for and browse manuals and details of wmms-24EU-(59)4 Air Conditioning Company McKinney, TX HVAC Contractors Racine, WI Air Conditioner Service Coppell, TX HVAC Contractors Redmond, WA Heating Repair Tucson, AZ Certified Electrician Edina, MN Top Watch This Item Your Phone Number: Your Email: Message here: Make an offer Quantity you would like to buy: 1 2 3 4 5 6 7 8 9 10 How much would you like to pay for each unit: Type your Message: Shipping Address: URL of the website where you saw cheaper price Or better deal: Your email address: Your phone number: E-mail a friend about this item Your friend email: Your Email: Message here: Email For Price Your Phone Number: Your Email: Shipping Zip Code: How soon do you need this product?: Immidiately Within a week Within couple of months Just looking for price Message here:

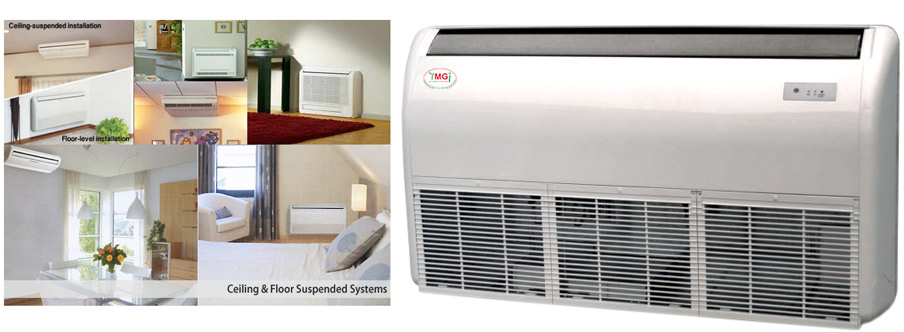

Brand: Save Listing| Email Listing | Share Product Name: YMGI Multizone Purpose Floor/Ceiling 24,000 Indoor Item#: wmms-24EU-(59)4 Reg Price: $1,345.99 Your Price: $929.99 Choose QTY: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Product Details Manuals Video Warranty Shipping Info Returns / Policy Ask A Question Product Details - wmms-24EU-(59)4 Description (59)2 DC Inverter Multiple Zone-Indoor Units-Ceiling/Floor Unit EU, 24K Btu/h, 208-230/1/60 Items Unit / Conditions WMMS-24EU-V2B(59)2 Power Supply Voltage/Ph/Hz 208-230/1/60 Allowed Voltage Range 187-253V Cooling Capacity High/Standard/Low 26500/22800/9600 Heating Capacity ID 70/60, OD 47/43F 27400 ID 70/60, OD 17/15F 23600 ID 70/60, OD 17/5F 20600 SEER Btu/h.W 16 HSPF Btu/h.W 8.2 Dehumidifying Capacity Pints/Hr. 5.28 Air Flow (CFM) High/Medium/Low 736/530/412 Air-throw (Ft.) Horizontal Installation 35-30 Upon Mounting Height/Speed/Temp. Upright Installation 35-20 Upon Mounting Location/Speed/Temp. External Static Pressure Water In. 0 Sound Level Pressure dB(A) (H/M/L) 48/46/44 Power dB(A) (H/M/L) 58/56/54 Fan Motor Model FG50A Shaft Double Speed (RMP, H/M/L) 985/800/680 Output (W) 40 Input (W) 145 Capacitor (uF) 2 Fan Wheel Type-Piece Centrifugal-4 Diameter x Width (In.) 5.5 x 4.1 Swing/Step Motor Model MP35CB Piece 2 Output (W) 2 Input Power of Ele. Heater Type-W NA Electrical Protection Fuse PCB/Transformer T3.15A 250V / 0.2A Evaporator Coil Type Alu. Fin/Inner Grooved Copper Tube Color Blue or the Like Copper Line Connections Sealed by Dry Nitrogen Yes Flare/Nut-Liuqid + Gas 1/4? + 5/8? Drain Hose Connection OD (In.) 0.67 Condensate Pump Installed-Lift (In.) NA Refrigerant Environmental Friendly R410A Filter Type-Feature Standard-Washable Size WxH (In.) – Qty. 21.8 x 8.68 – 2 Clean Coil Surface Anti-Mildew Function Yes Pre-heating Function Anti-Cold Blowing Yes Memory of Previous Set-ups Power is Lost/Resumed Yes Auto-Restart Function If Power is Resumed Yes Unit Dimensions Net WxHxD (In.) 48 x 27.6 x 8.9 Package WxHxD (In.) 52.8 x 32.3 x 11.8 Unit Weight Net (LBs) 99 Packaged (LBs) 119 Loading Capacity 20’/40’/40’HQ 66/132/132 Your Phone Number : Your Email : What is your message about : - Select One - Sales Questions General Support Technical Support Webmaster What Is The Status Of Your Project? : - Select One - Ready To Buy Planning/Budgeting Just Curious/Not Buying Anytime Soon Type your name and message here : Verification Code : 1 + 7 Send Shop for and browse manuals and details of wmms-24EU-(59)4 Air Conditioning Company McKinney, TX HVAC Contractors Racine, WI Air Conditioner Service Coppell, TX HVAC Contractors Redmond, WA Heating Repair Tucson, AZ Certified Electrician Edina, MN Top
